Boiler Gas Burner
Our fully automatic integrated low NOX gas burner adopts innovative combustion head design, NOx emission w80mg/NrTV, suitable for 0.5~10T/H boiler,If you need boiler gas burner,SWT Burner is your first choice!
Introduction
Our fully automatic integrated low NOX gas burner adopts innovative combustion head design, NOx emission w80mg/NrTV, suitable for 0.5~10T/H boiler,If you need boiler gas burner,SWT Burner is your first choice!
Models and technical parameters
Model | Maximum power kW | Blower motor power kW | Power supply | Boiler T/H |
THG3.5LN | 640 | 1.1 | 380V3/N/PE50HZ | 0.5 |
THG7LN | 940 | 1.5 | 380V3/N/PE50HZ | 1 |
THG10.5LN | 1750 | 4 | 380V3/N/PE 50Hz | 1.5 |
THG14LN | 2250 | 4 | 380V3/N/PE 50Hz | 2 |
THG28-1LN | 3600 | 7.5 | 380V3/N/PE 50Hz | 3 |
THG28LN | 4100 | 10 | 380V3/N/PE50HZ | 4 |
THG35LN | 4750 | 15 | 380V3/N/PE 50Hz | 5 |
THG42LN | 5400 | 15 | 380V3/N/PE50HZ | 6 |
THG56LN | 8200 | 22 | 380V3/N/PE50HZ | 8 |
THG70LN | 10500 | 22 | 380V3/N/PE50HZ | 10 |
Maximum power is the maximum output power at zero back pressure.
Model | L1 | L2 | L3 | L4 | L5 | L6 | L7 | B1 | B2 | B3 | H1 | H2 | H3 | H4 | D1 | D2 | D3 | D4 | D5 | D6 | R1 | n-D7 |
THG3.5LN | 797 | 186 | 420 | 185 | 30 | 96 | 8 | 217 | 311 | 250 | 451 | 341 | 188 | 142 | 220 | 150 | DN40 | 140 | 186 | 162 | 660 | 4-M10 |
THG7LN | 870 | 200 | 420 | 208 | 42 | 108 | 8 | 281 | 357 | 270 | 495 | 375 | 222 | 162 | 258 | 193 | DN50 | 180 | 235 | 210 | 770 | 4-M10 |
THG10.5LN | 970 | 233 | 480 | 225 | 55 | 118 | 8 | 328 | 394 | 310 | 560 | 413 | 243 | 182 | 330 | 230 | DN65 | 220 | 298 | 270 | 810 | 4-M12 |
THG14LN | 970 | 233 | 480 | 225 | 55 | 118 | 8 | 328 | 394 | 310 | 560 | 413 | 243 | 182 | 330 | 230 | DN65 | 220 | 298 | 270 | 810 | 4-M12 |
THG28-1LN | 1158 | 300 | 480 | 246 | 62 | 128 | 8 | 357 | 494 | 440 | 655 | 482 | 260 | 217 | 380 | 292 | DN80 | 279 | 330 | 305 | 845 | 4-M12 |
THG28LN | 1158 | 300 | 480 | 246 | 62 | 128 | 8 | 357 | 494 | 440 | 655 | 482 | 260 | 217 | 380 | 292 | DN80 | 279 | 330 | 305 | 845 | 4-M12 |
THG35LN | 1199 | 300 | 480 | 288 | 82 | 148 | 8 | 357 | 616 | 440 | 655 | 482 | 260 | 272 | 450 | 342 | DN100 | 325 | 400 | 385 | 845 | 5-M12 |
THG42LN | 1228 | 318 | 580 | 301 | 72 | 156 | 8 | 409 | 606 | 500 | 734 | 518 | 268 | 257 | 432 | 382 | DN80 | 360 | 480 | 390 | 905 | 4-M16 |
THG56LN | 1660 | 484 | 650 | 368 | 100 | 183 | 8 | 560 | 660 | 680 | 1068 | 768 | 420 | 315 | 600 | 470 | DN100 | 447 | 550 | 500 | 1550 | 6-M16 |
THG70LN | 1660 | 484 | 650 | 368 | 100 | 183 | 8 | 560 | 660 | 680 | 1068 | 768 | 420 | 315 | 600 | 470 | DN100 | 447 | 550 | 500 | 1550 | 6-M16 |
Product Advantages
Fully automatic integrated low NOX gas burner with fully electronic proportional adjustment, high adjustment accuracy, high combustion efficiency
High quality aluminum alloy body, light weight
Aerodynamic design for low noise operation
Gas pressure protection, air pressure protection Automatic gas leakage detection, dual gas valve group Safe flame monitoring system
Pre-purging the furnace
When the burner is stopped, the damper automatically closes
Easy installation, commissioning and maintenance
You can simply switch to a different type of gas (for other types of gas, the burner parameters will change,
For details, please consult the burner technical department)

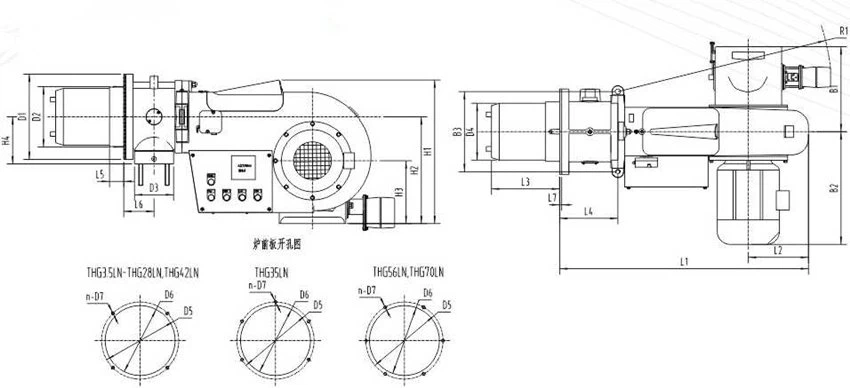

Installation Dimensions
