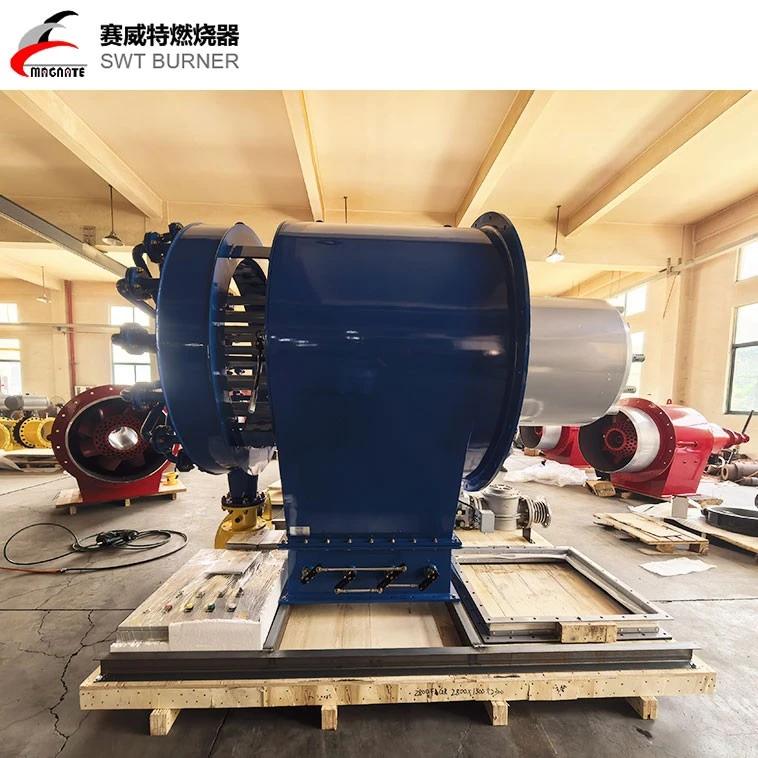

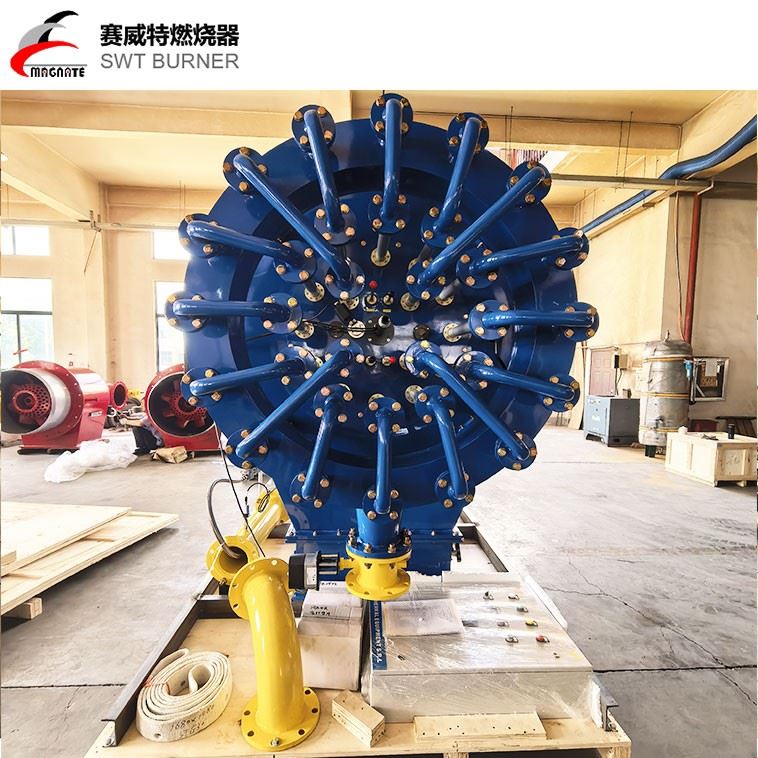

Low Nitrogen Industrial Burner
A high-efficiency combustion solution designed for industrial boilers, delivering 35-ton steam capacity per hour (35t/h) while ensuring ultra-low nitrogen oxide (NOx) emissions.For High-Efficiency Industrial Gas Burners (3t–65t boiler capacity), contact SWT Burner. Our team of professional boiler burner experts is ready to assist you...
Introduction
This 35t low nitrogen industrial burner is a high-capacity burner designed for industrial applications, such as boilers, furnaces, or heating systems, with a combustion capacity of 35 tons of steam per hour (t/h). The "low nitrogen" designation indicates that the burner is engineered to minimize nitrogen oxide (NOₓ) emissions, which are harmful pollutants contributing to air pollution and smog.
Product Details
Flue gas internal circulation, stratified combustion technology, combustion air is hot air<150C, NOx emission ≤50mg/Nm'
Burner power range: 175-10500kW
Fully electronic proportional adjustment, high adjustment accuracy, high combustion efficiency
Aerodynamic design for low noise operation
Gas pressure protection, air pressure protection
Automatic detection of gas leakage, dual gas valve group
Safe flame monitoring system
Pre-purging the furnace
When the burner is stopped, the damper automatically closes
Easy installation, commissioning and maintenance
Note: Power ≥ 10500KW, need to be equipped with large split type hot air burner,
Consult our technical department for details.
Technical Data
|
Model |
Power Range (Hot Wind＜150℃) kW |
Power Supply |
|
THG7LN-N |
175-940 |
380V 3/N/PE 50Hz |
|
THG10.5LN-N |
300-1750 |
380V 3/N/PE 50Hz |
|
THG14LN-N |
400-2250 |
380V 3/N/PE 50Hz |
|
THG28-1LN-N |
500-3600 |
380V 3/N/PE 50Hz |
|
THG28LN-N |
500-4100 |
380V 3/N/PE 50Hz |
|
THG35LN-N |
900-4750 |
380V 3/N/PE 50Hz |
|
THG42LN-N |
600-5400 |
380V 3/N/PE 50Hz |
|
THG56LN-N |
1000-8200 |
380V 3/N/PE 50Hz |
|
THG70LN-N |
1000-10500 |
380V 3/N/PE 50Hz |
|
Model |
L1 |
L2 |
L3 |
A1 |
A2 |
A3 |
A4 |
A5 |
φD1 |
ΦD2 |
n-φD3 |
φD4 |
D5 |
7-MD6 |
H1 |
H2 |
|
THG7LN-N |
420 |
100 |
566 |
320 |
280 |
180 |
284 |
324 |
φ180 |
φ220 |
8-φ14 |
φ220 |
DN50 |
7-M12 |
192 |
392 |
|
THG10.5LN-N |
480 |
109 |
631 |
370 |
330 |
234 |
334 |
374 |
φ220 |
φ280 |
8-φ14 |
φ280 |
DN65 |
7-M12 |
207 |
440 |
|
THG14LN-N |
480 |
109 |
631 |
370 |
330 |
234 |
334 |
374 |
φ220 |
φ280 |
8-φ14 |
φ280 |
DN65 |
7-M12 |
207 |
440 |
|
THG28-1LN-N |
480 |
130 |
781 |
460 |
410 |
308 |
408 |
448 |
φ279 |
φ340 |
12-φ14 |
φ340 |
DN80 |
7-M12 |
255 |
520 |
|
THG28LN-N |
480 |
130 |
781 |
460 |
410 |
308 |
408 |
448 |
φ279 |
φ340 |
12-φ14 |
φ340 |
DN80 |
7-M12 |
255 |
520 |
|
THG35LN-N |
480 |
140 |
790 |
485 |
435 |
333 |
423 |
473 |
φ325 |
φ390 |
12-φ14 |
φ390 |
DN80 |
7-M12 |
270 |
518 |
|
THG42LN-N |
580 |
148 |
801 |
538 |
486 |
364 |
468 |
508 |
φ360 |
φ430 |
16-φ14 |
φ430 |
DN80 |
7-M16 |
284 |
550 |
|
THG56LN-N |
650 |
166 |
1007 |
622 |
572 |
454 |
558 |
598 |
φ447 |
φ510 |
16-φ14 |
φ510 |
DN100 |
7-M16 |
490 |
648 |
|
THG70LN-N |
650 |
166 |
1007 |
622 |
572 |
454 |
558 |
598 |
φ447 |
φ510 |
16-φ14 |
φ510 |
DN100 |
7-M16 |
490 |
648 |
Product application
Industrial boilers for heating, power generation, or process steam.
35t Ultra Low NOx Burner with HVAC systems in large facilities.
Industrial Gas Burner is widely used in Food processing plants and Chemical and petrochemical industries.
Low nitrogen industrial burner can also be used for Textile and paper manufacturing.
Why choose SWT Burner
SWT Burner is a professional manufacturer that designs, manufactures and sells Integrated Low Nitrogen Burners for various boilers, industrial large burners, low nitrogen burners, etc., with excellent quality, favorable price, professional burner technology, advanced Manufacturing process, if you want to know more Low nitrogen burner for thermal oil furnace information, please contact us!
