3T Oil Burners
3T standard oil burner is a compact and efficient heating solution designed for medium-scale applications, such as commercial buildings, small industrial facilities, and residential complexes. It is known for its reliability, ease of use, and ability to deliver consistent heat output...
Introduction
3T standard oil burner is a compact and efficient heating solution designed for medium-scale applications, such as commercial buildings, small industrial facilities, and residential complexes. It is known for its reliability, ease of use, and ability to deliver consistent heat output.
Technical parameters
|
Model |
MTL1050/B |
MTL1400/B |
MTL1750/B |
MTL2100/B |
MTL2450/B |
|
Capacity (MW) |
16.6 |
21.35 |
26.09 |
33.21 |
37.95 |
|
Fuel |
Light oil |
||||
|
Power supply |
380V 3/N/PE 50HZ |
||||
|
Regulation mode |
Slide two-stage or proportional control |
||||
|
Sequence controller |
LAL2.25/LGK16** |
||||
|
Ignition transformer |
2×7000V |
||||
*The viscosity of light oil is 6cSt (1.5ºE)
**For burners that operate continuously
Product Features
The fuel quantity of this 3T Oil Burners changes continuously. If the control system is equipped with a load proportional regulator, it becomes a continuous proportional adjustment, and when it is not equipped with a load proportional regulator, it is a two-stage sliding mode.

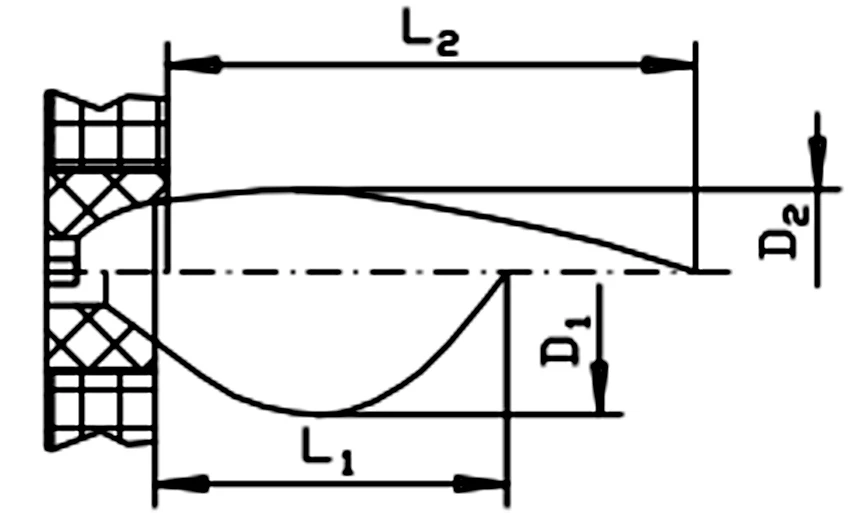

Installation Dimensions
|
MTL1050/B |
MTL1400/B |
MTL1750/B |
MTL2100/B |
MTL2450/B |
|
|
D1 |
φ595 |
φ650 |
φ680 |
φ780 |
φ800 |
|
D2 |
φ660 |
φ720 |
φ720 |
φ842 |
φ842 |
|
D3 |
φ560 |
φ620 |
φ660 |
φ730 |
φ770 |
|
L1 |
350 |
360 |
360 |
350 |
350 |
|
L2 |
1660 |
1800 |
1790 |
1940 |
1940 |
|
L3 |
800 |
833 |
860 |
860 |
900 |
|
H1 |
850 |
900 |
950 |
1000 |
1000 |
|
H2 |
1345 |
1384 |
1490 |
1544 |
1544 |
|
A×B |
440×690 |
500×760 |
540×780 |
600×850 |
610×850 |
Product advantage
Cost-Effective: 3T Oil Burners with high efficiency and low maintenance requirements reduce operational costs.
Reliable Performance: Ensures consistent heat output for demanding applications.
Environmentally Compliant: Meets emissions standards and reduces environmental impact.
Easy to Use: Simple installation, operation, and maintenance make it a practical choice.
Quiet and Compact: Suitable for environments where space and noise are concerns.
