Coke Oven Gas Low Nitrogen Burner
SWT Burner may be your good choose if you require a Coke Oven Gas Low Nitrogen Burner! We are referring to the EN267 and EN676 standards as well as domestically applicable standards used since 2001 in the production of electromechanical integrated automated burners. We promise to supply the high-quality Non standard boiler Burner on time and appreciate your support...
Introduction
SWT Burner may be your good choose if you require a Coke Oven Gas Low Nitrogen Burner! We are referring to the EN267 and EN676 standards as well as domestically applicable standards used since 2001 in the production of electromechanical integrated automated burners. We promise to supply the high-quality Non standard boiler Burner on time and appreciate your support.
Technical parameters
型号规格 （Model） | 最大输出功率 （Capacity） | 调节方式 （Regulation mode） | 鼓风机功率* （Rated power of fan） | 配用锅炉 (Equipped with boiler)
|
KW | 104kcal/h | KW | T/h | |
MTG70/J | 930 | 80 | 滑动两级式或比例调节式 （Slide two-stage or proportional control） | 2.2 |
MTG140/J | 1860 | 160 | 5.5 | 2 |
MTG280-1/J | 2790 | 240 | 7.5 | 3 |
MTG280/J | 3720 | 320 | 11 | 4 |
MTG350/J | 4650 | 400 | 11 | 5 |
MTG420/J | 5580 | 480 | 15 | 6 |
MTG560/J | 7255 | 624 | 22 | 8 |
MTG700/J | 9070 | 780 | 30 | 10 |
MTG1050/J | 13125 | 1128 | 45 | 15 |
MTG1400/J | 17440 | 1500 | 55 | 20 |
MTG1750/J | 21800 | 1875 | 75 | 25 |
MTG2100/J | 26160 | 2250 | 75 | 30 |
MTG2450/J | 30520 | 2625 | 110 | 35 |
MTG2800/J | 34880 | 3000 | 132 | 40 |
*Applicable to the environment where the back pressure of the combustion chamber is not more than 1500Pa and the altitude is less than 500m.
*The fan is corrected according to the back pressure and altitude of the equipment when the environment changes.

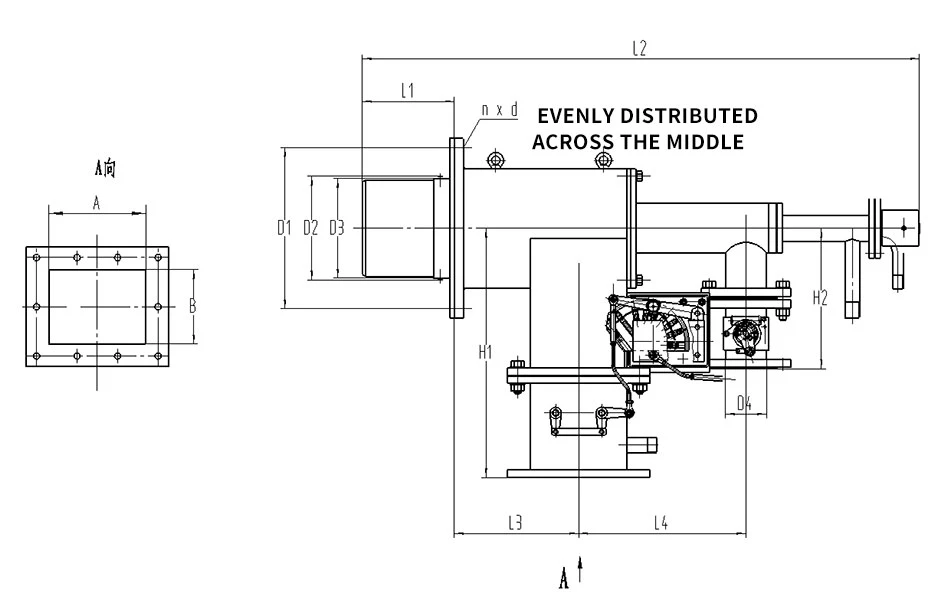

Installation dimensions
Experience and markets
SWT Burner has more than 22years working experiences on researching and selling,which is a famous professional manufacturer in the design, manufacture and sales of automatic series burner,Coke oven gas burners in China. Our many burners are well sailed all over the world, got many compliments from customers.The use of LMV combustion manager and other high-end technology burner products have been widely used in the market.
Hot Tags: coke oven gas low nitrogen burner, China, suppliers, manufacturers, factory, custom, price, cheap, OEM, for sale, made in China, Blast Furnace Gas Burner, Coke Oven Gas Burner, Non Standard Boiler Burner, mechatronics coke oven gas burner, hot air burner for waste incineration, Producer Gas Burner
